如果你安装了pack包就重启电脑试试

1、Windows 10版本以上系统；
2、Keil V5：推荐使用528版本，高版本的测试过编译失败；
Keil V5 V528：https://armkeil.blob.core.windows.net/eval/MDK528.EXE
pack包：https://keilpack.azureedge.net/pack/ARM.CMSIS.5.9.0.pack

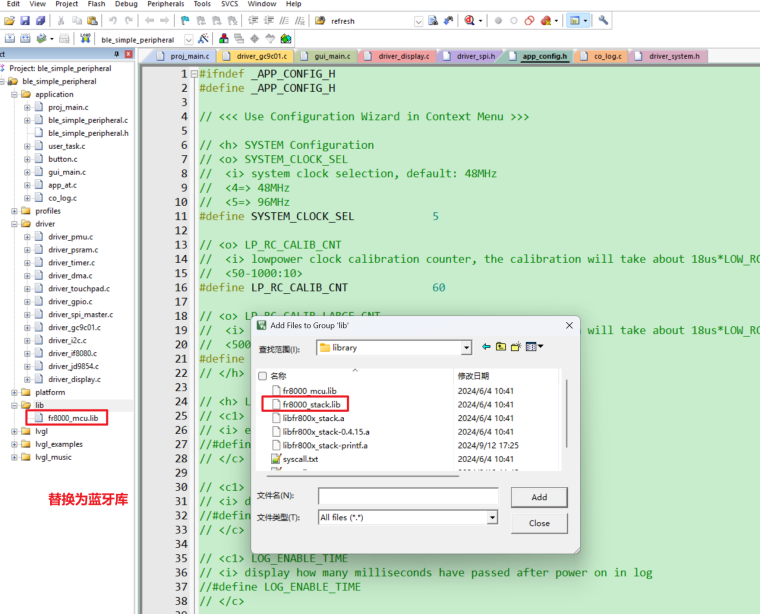

keil 工程里面不用动，直接编译就好了

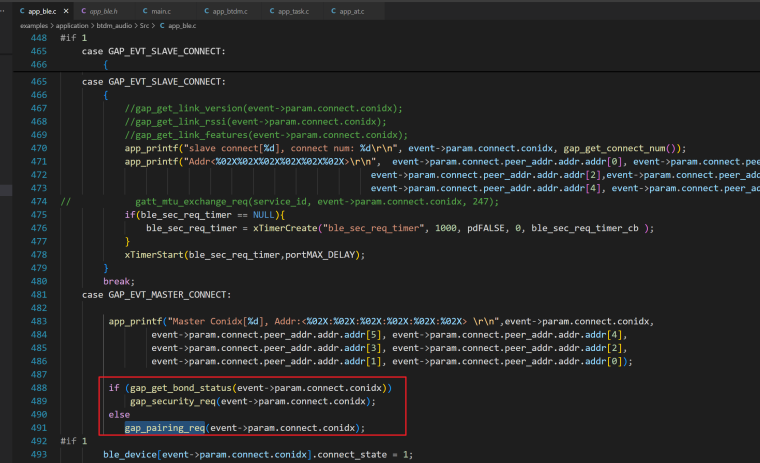

第二个广播，根据这个来图片的函数来设置

sdk里面有rtc的demo自行烧录验证，rtc功能正常就可以移到你的工程里面进行休眠验证

检查一下固件的大小是否大于flashDB的操作空间
检查flashDB设置flash的大小
检查OTA设置的B区起始地址

举例假设使用的是FR5098芯片flash为2M，设置ota_get_start_address的start_address为512K+8K是B区OTA的起始地址，那么用户储存区地址就是512k+512k+8k开始到到0x1FD000之前为用户区，然后flashDB的操作地址也应该是512k+512k+8k之后到0x1FD000之前都是可以操作的

FR802x 第一次能开机有日志，复位或者重启之后不能跑起来，115200波特率有freqchi

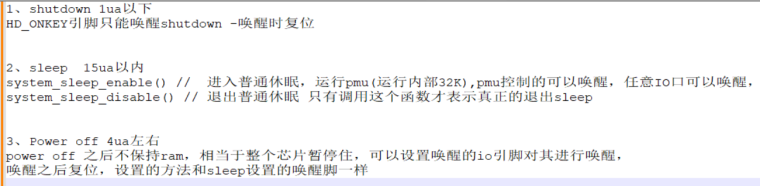

gpio rtc也可以

如下

/*
 * INCLUDE FILES
 ****************************************************************************************
 */
#include <stdio.h>
#include <string.h>

#include "gap_api.h"
#include "gatt_api.h"
#include "ble_stack.h"
#include "app_config.h"

#include "jump_table.h"
#include "co_log.h"

#include "plf.h"
#include "driver_system.h"
#include "driver_pmu.h"
#include "driver_uart.h"

#include "ble_simple_peripheral.h"
#include "simple_gatt_service.h"

#undef LOG_LOCAL_LEVEL
#define LOG_LOCAL_LEVEL        (LOG_LEVEL_INFO)
const char *app_tag = "project";

#define SYSTEM_STACK_SIZE           0x800

void patch_init(void);
void disable_ch_sel_2(void);
void conn_req_rssi_filter(int8_t rssi_value);

void systick_init(void);
void systick_delay_ms(uint32_t ms);
void systick_delay_us(uint32_t us);
uint32_t systick_get_ms(void);

/*
 * LOCAL VARIABLES
 */
static volatile uint32_t g_systick_ms = 0;

__attribute__((section("stack_section"))) static uint32_t system_stack[SYSTEM_STACK_SIZE/sizeof(uint32_t)];

const struct jump_table_version_t _jump_table_version __attribute__((section("jump_table_3"))) =
{
    .stack_top_address = &system_stack[SYSTEM_STACK_SIZE/sizeof(uint32_t)],
    .firmware_version = 0x00000000,
};

const struct jump_table_image_t _jump_table_image __attribute__((section("jump_table_1"))) =
{
    .image_type = IMAGE_TYPE_APP,
    .image_size = 0x20000,
};

/*********************************************************************
 * @fn      SysTick_Handler
 *
 * @brief   1ms tick. Overrides the WEAK handler in boot_vectors.
 */
void SysTick_Handler(void)
{
    g_systick_ms++;
}

/*********************************************************************
 * @fn      systick_init
 *
 * @brief   Start SysTick at 1ms. Must be called after system_set_clock().
 */
void systick_init(void)
{
    uint32_t ticks = system_get_clock() / 1000;

    if ((ticks == 0) || ((ticks - 1) > SysTick_LOAD_RELOAD_Msk)) {
        return;
    }

    SysTick_Config(ticks);
}

/*********************************************************************
 * @fn      systick_get_ms
 *
 * @brief   Milliseconds since systick_init. Does not advance in sleep.
 */
uint32_t systick_get_ms(void)
{
    return g_systick_ms;
}

/*********************************************************************
 * @fn      systick_delay_ms
 *
 * @brief   Blocking delay. Do not call with interrupts disabled.
 */
void systick_delay_ms(uint32_t ms)
{
    uint32_t start = g_systick_ms;

    while ((uint32_t)(g_systick_ms - start) < ms) {
    }
}

/*********************************************************************
 * @fn      systick_delay_us
 *
 * @brief   Blocking us delay. Temporarily uses SysTick as a one-shot,
 *          then restores the 1ms tick.
 */
void systick_delay_us(uint32_t us)
{
    uint32_t clk = system_get_clock();
    uint32_t ticks_per_us;
    uint32_t max_us;

    if ((us == 0) || (clk < 1000000)) {
        return;
    }

    ticks_per_us = clk / 1000000;
    max_us = SysTick_LOAD_RELOAD_Msk / ticks_per_us;

    while (us) {
        uint32_t chunk = (us > max_us) ? max_us : us;

        SysTick->CTRL = 0;
        SysTick->LOAD = ticks_per_us * chunk - 1;
        SysTick->VAL  = 0;
        SysTick->CTRL = SysTick_CTRL_CLKSOURCE_Msk | SysTick_CTRL_ENABLE_Msk;

        while ((SysTick->CTRL & SysTick_CTRL_COUNTFLAG_Msk) == 0) {
        }

        us -= chunk;
    }

    systick_init();
}

/*********************************************************************
 * @fn      user_entry_before_sleep_imp
 *
 * @brief   Before system goes to sleep mode, user_entry_before_sleep_imp()
 *          will be called, MCU peripherals can be configured properly before
 *          system goes to sleep, for example, some MCU peripherals need to be
 *          used during the system is in sleep mode.
 *
 * @param   None.
 *
 *
 * @return  None.
 */
__attribute__((section("ram_code"))) void user_entry_before_sleep_imp(void)
{
    /* SysTick uses CPU clock and would wake the core every 1ms */
    SysTick->CTRL = 0;

    pmu_calibration_stop();

    uart_putc_noint_no_wait(UART0, 's');
    co_delay_100us(1);

	pmu_set_pin_to_PMU(GPIO_PORT_A, (1<<GPIO_BIT_1));
	pmu_set_pin_to_PMU(GPIO_PORT_A, (1<<GPIO_BIT_0)|(1<<GPIO_BIT_4));
	pmu_set_pin_dir(GPIO_PORT_A, (1<<GPIO_BIT_0)|(1<<GPIO_BIT_4),GPIO_DIR_IN);
	pmu_set_pin_pull(GPIO_PORT_A, (1<<GPIO_BIT_0)|(1<<GPIO_BIT_4),GPIO_PULL_NONE);
    pmu_oscap_set(0);
}

/*********************************************************************
 * @fn      user_entry_after_sleep_imp
 *
 * @brief   After system wakes up from sleep mode, user_entry_after_sleep_imp()
 *          will be called, MCU peripherals need to be initialized again,
 *          this can be done in user_entry_after_sleep_imp(). MCU peripherals
 *          status will not be kept during the sleep.
 *
 * @param   None.
 *
 *
 * @return  None.
 */
__attribute__((section("ram_code"))) void user_entry_after_sleep_imp(void)
{

    pmu_set_pin_to_CPU(GPIO_PORT_A, (1<<GPIO_BIT_0));

    system_set_port_mux(GPIO_PORT_A, GPIO_BIT_0, PORTA0_FUNC_UART0_RXD);
    system_set_port_mux(GPIO_PORT_A, GPIO_BIT_1, PORTA1_FUNC_UART0_TXD);
    uart_init(UART0, 1152);
    fr_uart_enableIrq(UART0, Uart_irq_erbfi);

    /* RC calibration start. Ensure the accuracy of sleep wake time */
    pmu_calibration_start(PMU_CALI_SEL_RCLFOSC, LP_RC_CALIB_CNT);

    uart_putc_noint_no_wait(UART0, 'w');
    co_delay_100us(1);

    NVIC_EnableIRQ(PMU_IRQn);

    systick_init();
}

__attribute__((section("ram_code"))) void main_loop(void)
{
    while(1)
    {
        if(ble_stack_schedule_allow())
        {
            /*user code should be add here*/

            /* schedule internal stack event */
            ble_stack_schedule();
        }

        GLOBAL_INT_DISABLE();
        switch(ble_stack_sleep_check())
        {
            case 2:
            {
                ble_stack_enter_sleep();
            }
            break;
            default:
                break;
        }
        GLOBAL_INT_RESTORE();

        ble_stack_schedule_backward();
    }
}

/*********************************************************************
 * @fn      proj_init
 *
 * @brief   Main entrancy of user application. This function is called after BLE stack
 *          is initialized, and all the application code will be executed from here.
 *          In that case, application layer initializtion can be startd here.
 *
 * @param   None.
 *
 *
 * @return  None.
 */
void proj_init(void)
{
    LOG_INFO(app_tag, "BLE Peripheral\r\n");
	co_printf("%s\r\n",__func__);
    systick_delay_ms(500);
	co_printf("%s\r\n",__TIME__);

    // Application layer initialization, can included bond manager init,
    // advertising parameters init, scanning parameter init, GATT service adding, etc.
    simple_peripheral_init();
}

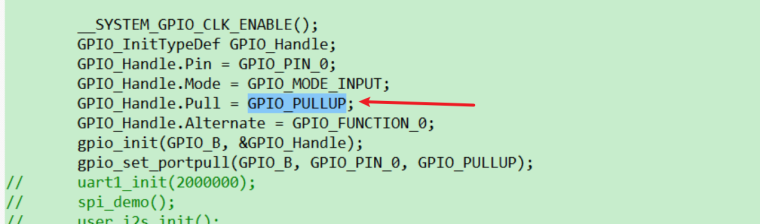

io口时钟开了吗
